How It Works

1. Build a payload by concatenating the timestamp, HTTP method, API path, and the raw request body.

2. Generate an HMAC SHA-256 hash using your unique API Secret.

3. Base64-encode the resulting hash to create the signature.

4. Send the signature and timestamp in the request headers along with your standard Bearer token .

5. Validation: The UPayments API validates the signature against the payload before processing the transaction.

Prerequisites

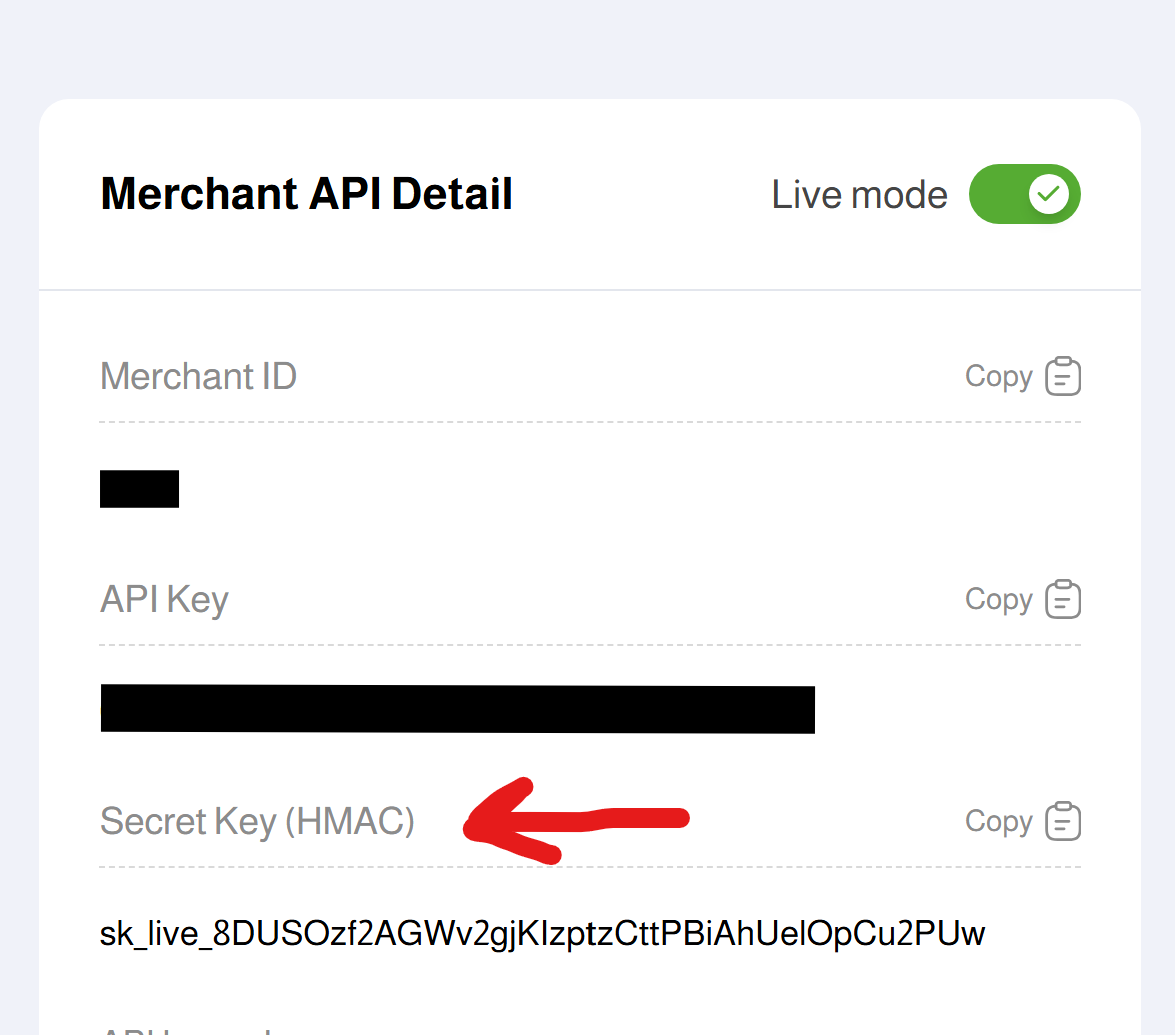

To implement HMAC, you must have the following credentials from your UPayments Dashboard:

• Merchant ID

• API Key

• API Secret Key

Required Headers

All requests must include the standard authorization header plus the specific HMAC security headers

Payload Format

The payload is a concatenated string formed as follows: timestamp + HTTP_METHOD + API_PATH + REQUEST_BODY

Example Payload

1718365200POSTcharge{"amount":100,"currency":"USD","order_id":"ORD123"}

Signature Algorithm

The signature is generated using the following logic: signature = Base64Encode(HMAC_SHA256(payload, API_SECRET))

Code Implementation Examples

const crypto = require('crypto');
const payload = timestamp + method + path + body;

const signature = crypto
  .createHmac('sha256', API_SECRET)
  .update(payload)
  .digest('base64');

$payload = $timestamp . $method . $path . $body;

$signature = base64_encode(
    hash_hmac('sha256', $payload, $apiSecret, true)
);

import hmac, hashlib, base64

signature = base64.b64encode(
    hmac.new(
        api_secret.encode(),
        payload.encode(),
        hashlib.sha256
    ).digest()
).decode()

Important Notes for Developers

• Endpoint Path: Use the path immediately following /api/v1/ when generating the signature (e.g., use charge for the Charge endpoint) .

• No Domain: Do not include the domain name (e.g., sandboxapi.upayments.com) in the payload string.

• Body Matching: The request body used to generate the signature must be an exact match (including spaces and formatting) to the JSON body sent in the HTTP request.

• GET Requests: For GET requests (such as Get Payment Status), use an empty string for the request body portion of the payload

Common Errors

• Missing Signature Headers: The request will be rejected if X-Signature or X-Timestamp are absent.

• Request Expired: To prevent replay attacks, signatures are only valid for a 1-minute window from the provided timestamp.

• Invalid Signature: Usually caused by a mismatch in the payload string construction or an incorrect API Secret.

Security Best Practices

• Secure Storage: Store API Secrets in environment variables or secure vault systems .

• Dynamic Signatures: Generate a fresh signature for every individual request.

• HTTPS Only: All API communications must be conducted over TLS/SSL (HTTPS).
